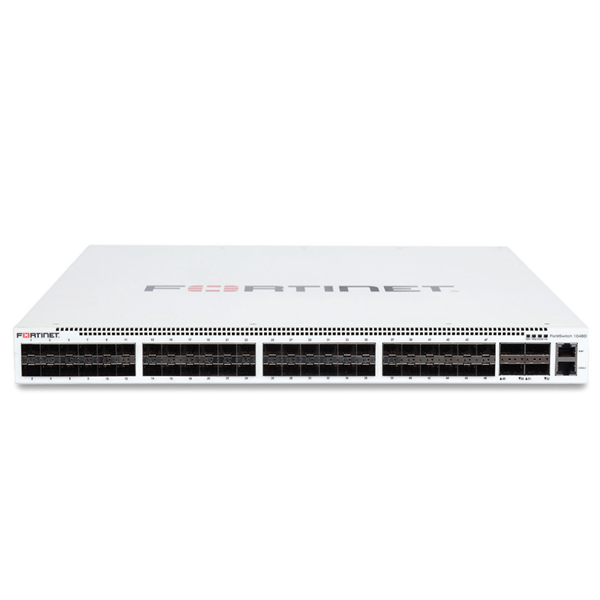

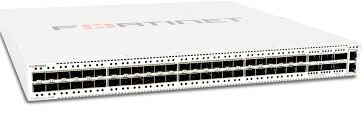

FS-1048D Fortinet FortiSwitch 1048D 48x 10GE SFP+ Slots, 4x 40 GE QSFP+



Brand: Fortinet Product code: FS-1048D Best Seller

Guarantee: 12 month

Brief description

Phân phối Fortinet FS-1048D FortiSwitch 1048D FortiGate switch Layer 2 và layer 3 controller compatible switch with 48x GE/10GE SFP/SFP+ slots and 4x 40 GE QSFP+, Dual AC power supplies, chính hãng giá tốt, FortiSwitch FS-1048D

See all

CONTACT

Gifts and incentives included

Committed to the best price on the market, contact us now for the best price!

OTHER PROMOTIONS:

Free delivery within Ho Chi Minh City.

Students - students get an additional discount of up to 200,000 VND.

Great deals when purchasing genuine Microsoft Office distributed by Sunhitech.

BUY NOW ADD TO CART

PRODUCT DESCRIPTION

FS-1048D Fortinet FortiSwitch 1048D 48x 10GE SFP+ slots and 4x 40 GE QSFP+

Fortinet SKU : FS-1048D
Fortinet Product : FortiSwitch 1048D
List Price : $14,995.00
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ

Mô tả tổng quan

FortiSwitch FS-1048D cung cấp các giải pháp Ethernet an toàn, đơn giản, khả năng mở rộng với thông lượng vượt trội, khả năng phục hồi và khả năng mở rộng cho các tổ chức có yêu cầu mạng hiệu suất cao.

FortiSwitch FS-1048D là thiết bị lý tưởng cho các Server, Firewall, cũng như triển khai các mạng Core hoặc triển khai mạng doanh nghiệp, ở đó yêu cầu hiệu suất cao 10GE

Fortinet FS-1048D được thiết kế để đáp ứng nhu cầu của các trung tâm dữ liệu chuyên sâu đòi hỏi băng thông cao và mạng doanh nghiệp ngày nay. Fortinet FS-1048D mang lại hiệu suất cao với tổng chi phí sở hữu thấp

Thông số kỹ thuật FortiSwitch FS-1048D

Hardware Specifications
Total Network Interfaces	48x GE/10 GE SFP+ ports, 4x 40 GE QSFP+ ports
10/100/1000 Service Ports	1
RJ-45 Serial Console Port	1
Form Factor	1 RU Rack-Mount Appliance
System Specifications
Switching Capacity (Duplex)	1280 Gbps
Packets Per Second (Duplex)	1920 Mpps
MAC Address Storage	128 K
Network Latency	< 800ns
VLANs Supported	4 K
IPv4/IPv6 Dual Stack Routing Ready Hardware	Yes
Link Aggregation Group Size	Up to 48
Total Link Aggregation Groups	Up to number of ports
Queues/Port	8
Packet Buffers	9 MB
DRAM	2 GB
NAND	128 MB
Dimensions
Height x Depth x Width (inches)	1.71 x 18.11 x 17.26
Height x Depth x Width (mm)	43.5 x 460 x 438.5
Weight	19.40 lbs (8.8 kg)
Environment
Power Required	100–240V AC, 50–60 Hz
Power Consumption (Maximum)	up to 215.3 W
Power Supply	Dual hot swappable AC
Heat Dissipation	551.06 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-13–158°F (-25–70°C)
Humidity	10–90% RH non-condensing
Mean Time Between Failures	> 10 years
Certification and Compliance	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Các tính năng trên Switch Fortinet FS-1048D

Management and Configuration	Auto Discovery of Multiple Switches Number of Managed Switches per FortiGate: 8 to 256 Depending on FortiGate Model (Please refer to admin-guide) FortiLink Stacking (Auto Inter-Switch Links) Software Upgrade of Switches Centralized VLAN Configuration Switch POE Control Link Aggregation Configuration Spanning Tree Yes LLDP/MED IGMP Snooping L3 Routing and Services Policy-Based Routing Virtual Domain
Security and Visibility	802.1x Authentication (Port-based, MAC-Based, MAB) Syslog Collection DHCP Snooping Device Detection MAC Black/While Listing Policy Control of Users and Devices
UTM Features	Firewall IPC, AV, Application Control, Botnet
High Availability	Support FortiLink FortiGate in HA Cluster LAG support for FortiLink Connection Active-Active Split LAG from FortiGate to FortiSwitches for Advanced Redundancy
Layer 2	Jumbo Frames Auto-negotiation for port speed and duplex IEEE 802.1D MAC Bridging/STP IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP Root Guard Edge Port / Port Fast IEEE 802.1Q VLAN Tagging Private VLAN IEEE 802.3ad Link Aggregation with LACP Unicast/Multicast traffic balance over trunking port (dst-ip, dst-mac, src-dst-ip, src-dst-mac, src-ip, src-mac) IEEE 802.1AX Link Aggregation Spanning Tree Instances (MSTP/CST) 15/1 15/1 15/1 15/1 IEEE 802.3x Flow Control and Back-pressure IEEE 802.1Qbb Priority-based Flow Control IEEE 802.3z 1000Base-SX/LX IEEE 802.3ab 1000Base-T IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3 CSMA/CD Access Method and Physical Layer Specifications Storm Control MAC, IP, Ethertype-based VLANs Virtual-Wire Split Port (QSFP+ breakout to 4xSFP+)
Layer 3	Static Routing (Hardware-based) Routing Entries 16K L3 Host Entries 16K Dynamic Routing Protocols: OSPFv2, RIPv2, VRRP, BGP, ISIS Multicast Protocols PIM-SSM ECMP Bidirectional Forwarding Detection (BFD) DHCP Relay IGMP Snooping
Security and Visibility	Port Mirroring Admin Authentication Via RFC 2865 RADIUS IEEE 802.1x authentication Port-based IEEE 802.1x Authentication MAC-based IEEE 802.1x Guest and Fallback VLAN IEEE 802.1x MAC Access Bypass (MAB) IEEE 802.1x Dynamic VLAN Assignment MAC-IP Binding sFlow ACL: 2K entries IEEE 802.1ab Link Layer Discovery Protocol (LLDP) IEEE 802.1ab LLDP-MED DHCP-Snooping Dynamic ARP Inspection Sticky MAC
High Availability	Multi-Chassis Link Aggregation (MCLAG)
Quality of Service	IEEE 802.1p Based Priority Queuing IP TOS/DSCP Based Priority Queuing
Management	IPv4 and IPv6 Management Telnet / SSH HTTP / HTTPS SNMP v1/v2c/v3 SNTP Standard CLI and web GUI interface Software download/upload: TFTP/FTP/GUI Managed from FortiGate Support for HTTP REST APIs for Configuration and Monitoring
Additional RFC and MIB Support	RFC 2571 Architecture for Describing SNMP Framework DHCP Client RFC 854 Telnet Server RFC 2865 RADIUS RFC 1643 Ethernet-like Interface MIB RFC 1213 MIB-II RFC 1354 IP Forwarding Table MIB RFC 2572 SNMP Message Processing and Dispatching RFC 1573 SNMP MIB II RFC 1157 SNMPv1/v2c RFC 2030 SNTP

SPECIFICATIONS

Thông số kỹ thuật FortiSwitch FS-1048D

Hardware Specifications
Total Network Interfaces	48x GE/10 GE SFP+ ports, 4x 40 GE QSFP+ ports
10/100/1000 Service Ports	1
RJ-45 Serial Console Port	1
Form Factor	1 RU Rack-Mount Appliance
System Specifications
Switching Capacity (Duplex)	1280 Gbps
Packets Per Second (Duplex)	1920 Mpps
MAC Address Storage	128 K
Network Latency	< 800ns
VLANs Supported	4 K
IPv4/IPv6 Dual Stack Routing Ready Hardware	Yes
Link Aggregation Group Size	Up to 48
Total Link Aggregation Groups	Up to number of ports
Queues/Port	8
Packet Buffers	9 MB
DRAM	2 GB
NAND	128 MB
Dimensions
Height x Depth x Width (inches)	1.71 x 18.11 x 17.26
Height x Depth x Width (mm)	43.5 x 460 x 438.5
Weight	19.40 lbs (8.8 kg)
Environment
Power Required	100–240V AC, 50–60 Hz
Power Consumption (Maximum)	up to 215.3 W
Power Supply	Dual hot swappable AC
Heat Dissipation	551.06 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-13–158°F (-25–70°C)
Humidity	10–90% RH non-condensing
Mean Time Between Failures	> 10 years
Certification and Compliance	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Các tính năng trên Switch Fortinet FS-1048D

Management and Configuration	Auto Discovery of Multiple Switches Number of Managed Switches per FortiGate: 8 to 256 Depending on FortiGate Model (Please refer to admin-guide) FortiLink Stacking (Auto Inter-Switch Links) Software Upgrade of Switches Centralized VLAN Configuration Switch POE Control Link Aggregation Configuration Spanning Tree Yes LLDP/MED IGMP Snooping L3 Routing and Services Policy-Based Routing Virtual Domain
Security and Visibility	802.1x Authentication (Port-based, MAC-Based, MAB) Syslog Collection DHCP Snooping Device Detection MAC Black/While Listing Policy Control of Users and Devices
UTM Features	Firewall IPC, AV, Application Control, Botnet
High Availability	Support FortiLink FortiGate in HA Cluster LAG support for FortiLink Connection Active-Active Split LAG from FortiGate to FortiSwitches for Advanced Redundancy
Layer 2	Jumbo Frames Auto-negotiation for port speed and duplex IEEE 802.1D MAC Bridging/STP IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP Root Guard Edge Port / Port Fast IEEE 802.1Q VLAN Tagging Private VLAN IEEE 802.3ad Link Aggregation with LACP Unicast/Multicast traffic balance over trunking port (dst-ip, dst-mac, src-dst-ip, src-dst-mac, src-ip, src-mac) IEEE 802.1AX Link Aggregation Spanning Tree Instances (MSTP/CST) 15/1 15/1 15/1 15/1 IEEE 802.3x Flow Control and Back-pressure IEEE 802.1Qbb Priority-based Flow Control IEEE 802.3z 1000Base-SX/LX IEEE 802.3ab 1000Base-T IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3 CSMA/CD Access Method and Physical Layer Specifications Storm Control MAC, IP, Ethertype-based VLANs Virtual-Wire Split Port (QSFP+ breakout to 4xSFP+)
Layer 3	Static Routing (Hardware-based) Routing Entries 16K L3 Host Entries 16K Dynamic Routing Protocols: OSPFv2, RIPv2, VRRP, BGP, ISIS Multicast Protocols PIM-SSM ECMP Bidirectional Forwarding Detection (BFD) DHCP Relay IGMP Snooping
Security and Visibility	Port Mirroring Admin Authentication Via RFC 2865 RADIUS IEEE 802.1x authentication Port-based IEEE 802.1x Authentication MAC-based IEEE 802.1x Guest and Fallback VLAN IEEE 802.1x MAC Access Bypass (MAB) IEEE 802.1x Dynamic VLAN Assignment MAC-IP Binding sFlow ACL: 2K entries IEEE 802.1ab Link Layer Discovery Protocol (LLDP) IEEE 802.1ab LLDP-MED DHCP-Snooping Dynamic ARP Inspection Sticky MAC
High Availability	Multi-Chassis Link Aggregation (MCLAG)
Quality of Service	IEEE 802.1p Based Priority Queuing IP TOS/DSCP Based Priority Queuing
Management	IPv4 and IPv6 Management Telnet / SSH HTTP / HTTPS SNMP v1/v2c/v3 SNTP Standard CLI and web GUI interface Software download/upload: TFTP/FTP/GUI Managed from FortiGate Support for HTTP REST APIs for Configuration and Monitoring
Additional RFC and MIB Support	RFC 2571 Architecture for Describing SNMP Framework DHCP Client RFC 854 Telnet Server RFC 2865 RADIUS RFC 1643 Ethernet-like Interface MIB RFC 1213 MIB-II RFC 1354 IP Forwarding Table MIB RFC 2572 SNMP Message Processing and Dispatching RFC 1573 SNMP MIB II RFC 1157 SNMPv1/v2c RFC 2030 SNTP

See full technical specifications.
