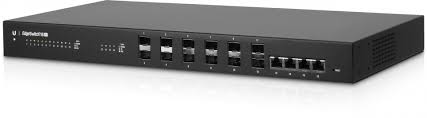

ES‑16‑XG Unifi EdgeSwitch 10G 16-Port Managed Aggregation Switch

Big Product Image
Brand:   Unifi    Product code:  ES‑16‑XG    Best Seller
Guarantee: 12 month

Brief description

Unifi EdgeSwitch ES‑16‑XG Non-Blocking Throughput, 16-Port with 10G Ethernet SFP+ and RJ45 Ports Managed Aggregation Switch.

See all
CONTACT
Gifts and incentives included

Committed to the best price on the market, contact us now for the best price!

OTHER PROMOTIONS:

Free delivery within Ho Chi Minh City.

Students - students get an additional discount of up to 200,000 VND.

Great deals when purchasing genuine Microsoft Office distributed by Sunhitech.

BUY NOW ADD TO CART

Unifi EdgeSwitch ES‑16‑XG 10G 16-Port Managed Aggregation Switch.

Part Number                 : ES‑16‑XG
Bảo hành                       : 12 tháng
List Price                       : $
Made In                         : China
Stock                             : Liên hệ

Thiết bị chuyển mạch ES‑16‑XG một sản phẩm thuộc dòng EdgeMAX của Ubiquiti Networks. EdgeSwitch ES‑16‑XG một bộ chuyển mạch 10G fiber, được quản lý hoàn toàn, mang lại hiệu suất mạnh mẽ và chuyển đổi thông minh cho các mạng đang phát triển.

EdgeSwitch cung cấp một bộ nâng cao các tính năng và giao thức chuyển đổi Lớp 2, đồng thời cũng cung cấp khả năng định tuyến Lớp 3.

Thông số kỹ thuật.

Dimensions443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Weight Without Mount BracketsWith Mount Brackets
2.62 kg (5.78 lb)2.71 kg (5.97 lb)
Total Non-Blocking Throughput160 Gbps
Enclosure CharacteristicsSGCC Steel
Switching Capacity320 Gbps
Forwarding Rate238.10 Mpps
Max. DC Power Consumption36W (Excludes SFP/SFP+ Modules)
Power Method ACDC
100-240VAC/50-60 Hz, Universal InputDC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power SupplyAC/DC, Internal, 56W DC
Supported Voltage Range
AC: 100 to 240VAC
DC: 25 to 16VDC
LEDs Per Port Speed/Link/Activity
Networking Interfaces

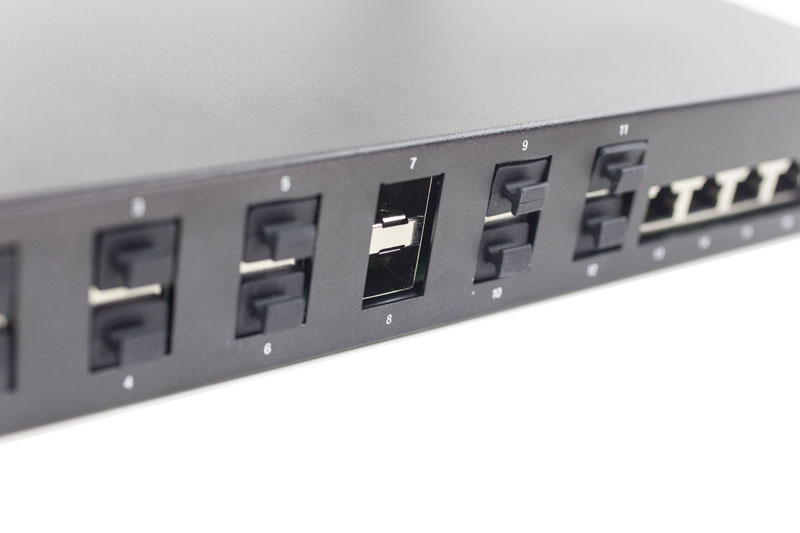

(12) 1/10 Gbps SFP+ Ethernet Ports
(4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface(1) RJ45 Serial Port, Ethernet In/Out Band
CertificationsCE, FCC, IC
WallmountYes
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity5 to 95% Noncondensing
Shock and VibrationETSI300-019-1.4 Standard
Software Information
Core Switching Features
• ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
• IEEE 802.1D: Spanning Tree Compatibility
• IEEE 802.1S: Multiple Spanning Tree Compatibility
• IEEE 802.1W: Rapid Spanning Tree Compatibility
• IEEE 802.1Q: Virtual LANs with Port-Based VLANs
• IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
• IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-T
• IEEE 802.3ab: 1000BASE-T
• IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
• IEEE 802.3ac: VLAN Tagging
• IEEE 802.3ad: Link Aggregation
• IEEE 802.3x: Flow Control
• IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (G)
• IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
• IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)
• RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
Advanced Layer 2 Features
• Broadcast Storm Recovery
• Broadcast/Multicast/Unknown Unicast Storm Recovery
• DHCP Snooping
• IGMP Snooping Querier
• Independent VLAN Learning (IVL) Support
• Jumbo Ethernet Frame Support
• Port MAC Locking
• Port Mirroring
• Protected Ports
• Static MAC Filtering
• TACACS+
• Voice VLANs
• Unauthenticated VLAN
• Internal 802.1X Authentication Server
Platform Specifications
• DHCP Server
  • Maximum Number of Pools: 128
  • Maximum Number of Leases (Total): 2048
• Routing
  • Number of Routes: 16
  • Number of Routing Interfaces: 15
• VLANs: 4093
• MAC Addresses: 16,384
• ARP Cache Size: 493
• MSTP Instances: 4
• LAGs: 6
• ACLs: 100 with 10 Rules per Port
• Traffic Classes (Queues): 8
System Facilities
• Event and Error Logging Facility
• Run-Time and Configuration Download Capability
• PING Utility
• FTP/TFTP Transfers via IPv4/IPv6
• Malicious Code Detection
• BootP and DHCP
• RFC 2021: Remote Network Monitoring Management Information Base Version 2
• RFC 2030: Simple Network Time Protocol (SNTP)
• RFC 2819: Remote Network Monitoring Management Information Base
• RFC 2865: RADIUS Client
• RFC 2866: RADIUS Accounting
• RFC 2868: RADIUS Attributes for Tunnel Protocol Support
• RFC 2869: RADIUS Extensions
• RFC 3579: RADIUS Support for EAP
• RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
• RFC 3164: BSD Syslog Protocol
Management
• Web UI
• Industry-Standard CLI
• IPv6 Management
• Password Management
• Autoinstall Support for Firmware Images and Configuration Files
• SNMP v1, v2, and v3
• SSH 1.5 and 2.0
• SSL 3.0 and TLS 1.0
• Secure Copy (SCP)
• Telnet (Multi-Session Support)
Layer 3 Routing• Static Routing
QoS

• Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on:

  • Time-Based ACL
  • Source/Destination IP Address
  • TCP/UDP Source/Destination Port
  • IP Protocol Type
  • Type of Service (ToS) or Differentiated Services (DSCP) Field
  • Source/Destination MAC Address
  • EtherType
  • IEEE 802.1p User Priority
  • VLAN ID
  • RFC 1858: Security Considerations for IP Fragment Filtering

• Optional ACL Rule Attributes

  • Assign Flow to a Specific Class of Service (CoS) Queue
  • Redirect Matching Traffic Flows

• Differentiated Services (DiffServ)

  • Classify Traffic Based on Same Criteria as ACLs
  • Mark the IP DSCP or Precedence Header Fields, Optional
  • Police the Flow to a Specific Rate with Two-Color Aware Support
  • RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers
  • RFC 2475: An Architecture for Differentiated Services
  • RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group
  • RFC 3246: An Expedited Forwarding PHB
  • RFC 3260: New Terminology and Clarifications for DiffServ

• Class of Service (CoS) Queue Mapping Configuration

  • AutoVoIP: Automatic CoS Settings for VoIP
  • IP DSCP-to-Queue Mapping
  • Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted)
  • Interface Egress Shaping Rate
  • Strict Priority versus Weighted Scheduling per Queue
See more
Dimensions443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Weight Without Mount BracketsWith Mount Brackets
2.62 kg (5.78 lb)2.71 kg (5.97 lb)
Total Non-Blocking Throughput160 Gbps
Enclosure CharacteristicsSGCC Steel
Switching Capacity320 Gbps
Forwarding Rate238.10 Mpps
Max. DC Power Consumption36W (Excludes SFP/SFP+ Modules)
Power Method ACDC
100-240VAC/50-60 Hz, Universal InputDC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power SupplyAC/DC, Internal, 56W DC
Supported Voltage Range
AC: 100 to 240VAC
DC: 25 to 16VDC
LEDs Per Port Speed/Link/Activity
Networking Interfaces

(12) 1/10 Gbps SFP+ Ethernet Ports
(4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface(1) RJ45 Serial Port, Ethernet In/Out Band
CertificationsCE, FCC, IC
WallmountYes
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity5 to 95% Noncondensing
Shock and VibrationETSI300-019-1.4 Standard
Software Information
Core Switching Features
• ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
• IEEE 802.1D: Spanning Tree Compatibility
• IEEE 802.1S: Multiple Spanning Tree Compatibility
• IEEE 802.1W: Rapid Spanning Tree Compatibility
• IEEE 802.1Q: Virtual LANs with Port-Based VLANs
• IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
• IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-T
• IEEE 802.3ab: 1000BASE-T
• IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
• IEEE 802.3ac: VLAN Tagging
• IEEE 802.3ad: Link Aggregation
• IEEE 802.3x: Flow Control
• IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (G)
• IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
• IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)
• RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
Advanced Layer 2 Features
• Broadcast Storm Recovery
• Broadcast/Multicast/Unknown Unicast Storm Recovery
• DHCP Snooping
• IGMP Snooping Querier
• Independent VLAN Learning (IVL) Support
• Jumbo Ethernet Frame Support
• Port MAC Locking
• Port Mirroring
• Protected Ports
• Static MAC Filtering
• TACACS+
• Voice VLANs
• Unauthenticated VLAN
• Internal 802.1X Authentication Server
Platform Specifications
• DHCP Server
  • Maximum Number of Pools: 128
  • Maximum Number of Leases (Total): 2048
• Routing
  • Number of Routes: 16
  • Number of Routing Interfaces: 15
• VLANs: 4093
• MAC Addresses: 16,384
• ARP Cache Size: 493
• MSTP Instances: 4
• LAGs: 6
• ACLs: 100 with 10 Rules per Port
• Traffic Classes (Queues): 8
System Facilities
• Event and Error Logging Facility
• Run-Time and Configuration Download Capability
• PING Utility
• FTP/TFTP Transfers via IPv4/IPv6
• Malicious Code Detection
• BootP and DHCP
• RFC 2021: Remote Network Monitoring Management Information Base Version 2
• RFC 2030: Simple Network Time Protocol (SNTP)
• RFC 2819: Remote Network Monitoring Management Information Base
• RFC 2865: RADIUS Client
• RFC 2866: RADIUS Accounting
• RFC 2868: RADIUS Attributes for Tunnel Protocol Support
• RFC 2869: RADIUS Extensions
• RFC 3579: RADIUS Support for EAP
• RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
• RFC 3164: BSD Syslog Protocol
Management
• Web UI
• Industry-Standard CLI
• IPv6 Management
• Password Management
• Autoinstall Support for Firmware Images and Configuration Files
• SNMP v1, v2, and v3
• SSH 1.5 and 2.0
• SSL 3.0 and TLS 1.0
• Secure Copy (SCP)
• Telnet (Multi-Session Support)
Layer 3 Routing• Static Routing
QoS

• Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on:

  • Time-Based ACL
  • Source/Destination IP Address
  • TCP/UDP Source/Destination Port
  • IP Protocol Type
  • Type of Service (ToS) or Differentiated Services (DSCP) Field
  • Source/Destination MAC Address
  • EtherType
  • IEEE 802.1p User Priority
  • VLAN ID
  • RFC 1858: Security Considerations for IP Fragment Filtering

• Optional ACL Rule Attributes

  • Assign Flow to a Specific Class of Service (CoS) Queue
  • Redirect Matching Traffic Flows

• Differentiated Services (DiffServ)

  • Classify Traffic Based on Same Criteria as ACLs
  • Mark the IP DSCP or Precedence Header Fields, Optional
  • Police the Flow to a Specific Rate with Two-Color Aware Support
  • RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers
  • RFC 2475: An Architecture for Differentiated Services
  • RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group
  • RFC 3246: An Expedited Forwarding PHB
  • RFC 3260: New Terminology and Clarifications for DiffServ

• Class of Service (CoS) Queue Mapping Configuration

  • AutoVoIP: Automatic CoS Settings for VoIP
  • IP DSCP-to-Queue Mapping
  • Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted)
  • Interface Egress Shaping Rate
  • Strict Priority versus Weighted Scheduling per Queue
See full technical specifications.
